Mira

Light different

Mira challenges how we think about lighting an entire room. Taking a fresh approach to providing functional, full-room illumination, Mira directs light towards ceiling and wall surfaces, which reflects evenly to fully illuminate a space.

It’s functional

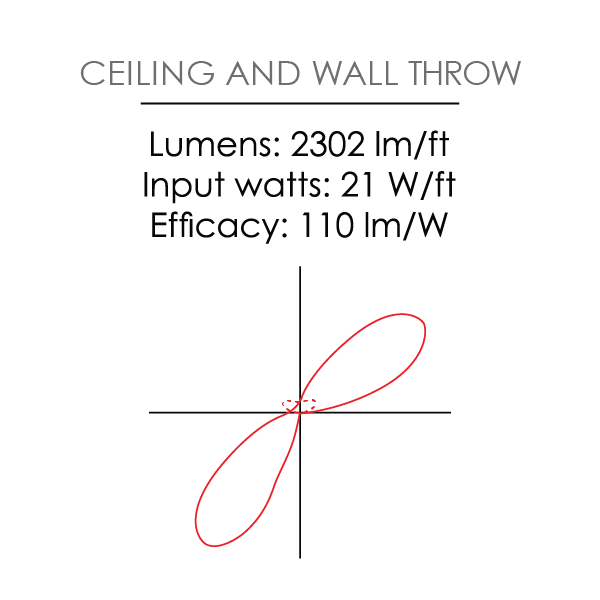

Mira’s advanced optics create an asymmetric light distribution directed towards the ceiling and walls. With more than 2300 lumens per foot, Mira generates enough reflected light to functionally illuminate the desired surfaces.

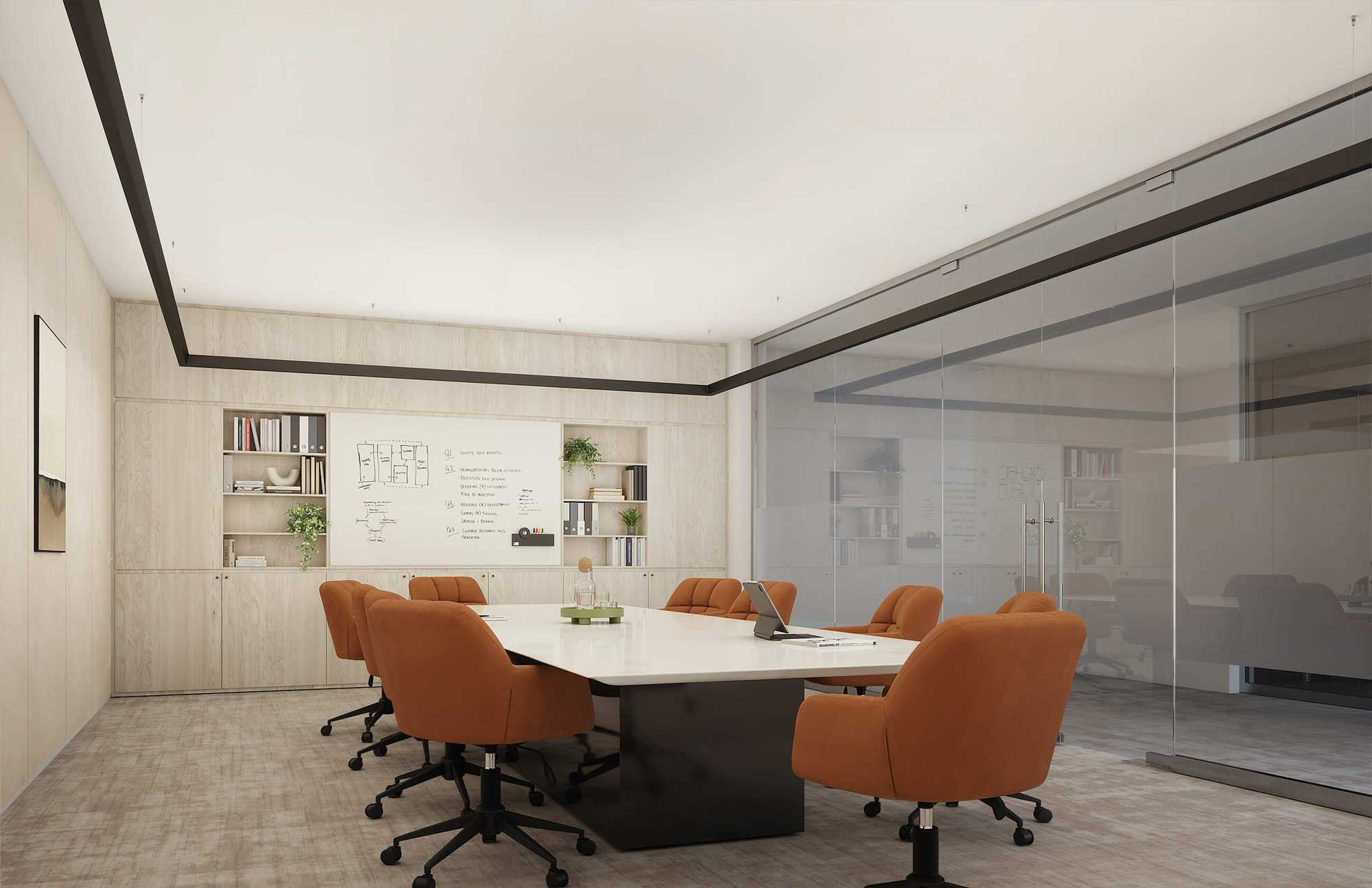

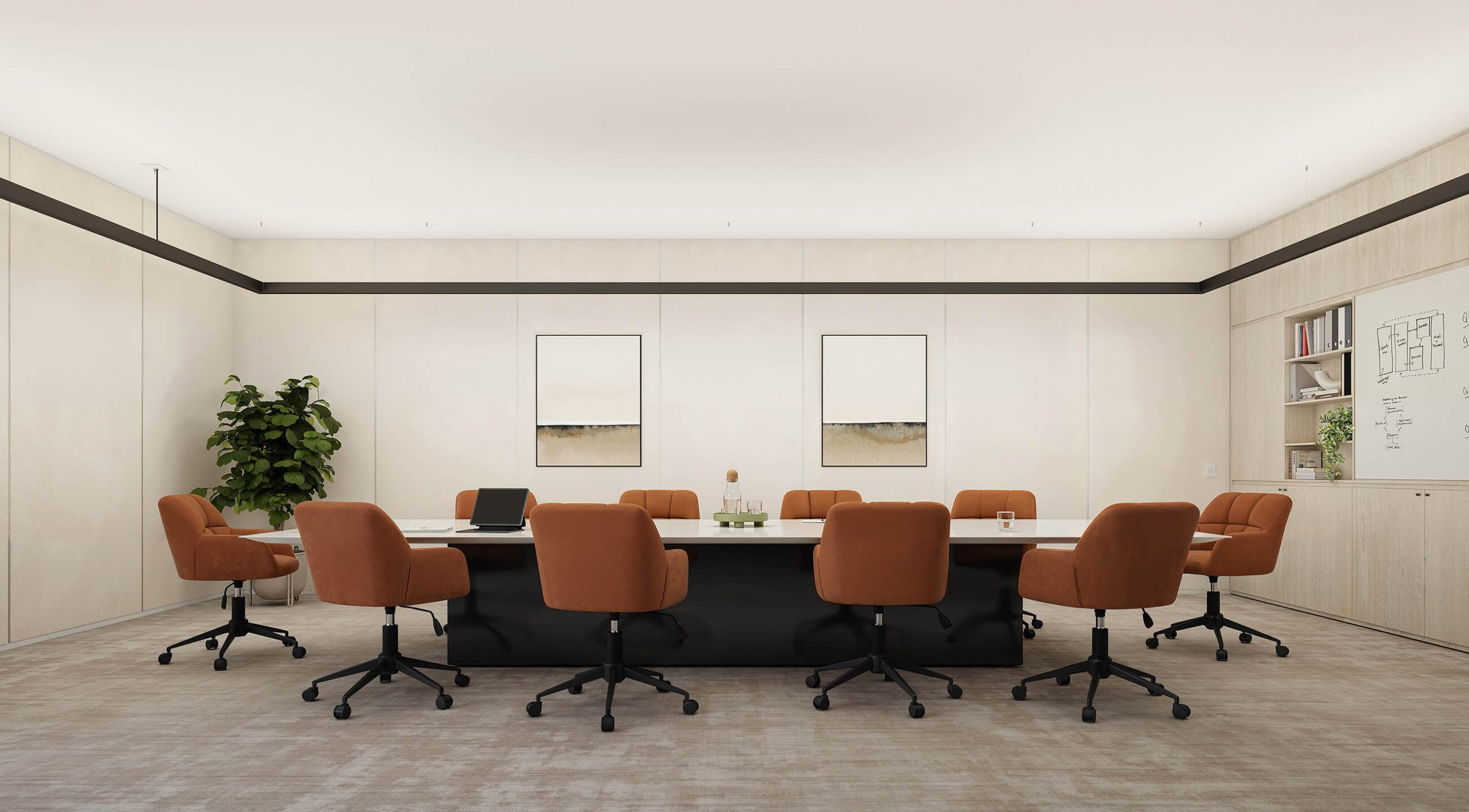

Mira luminaires lighting a conference room

Combine forces

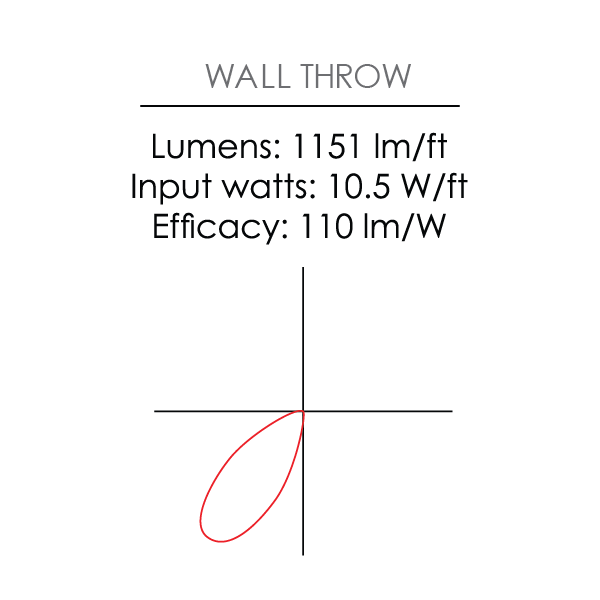

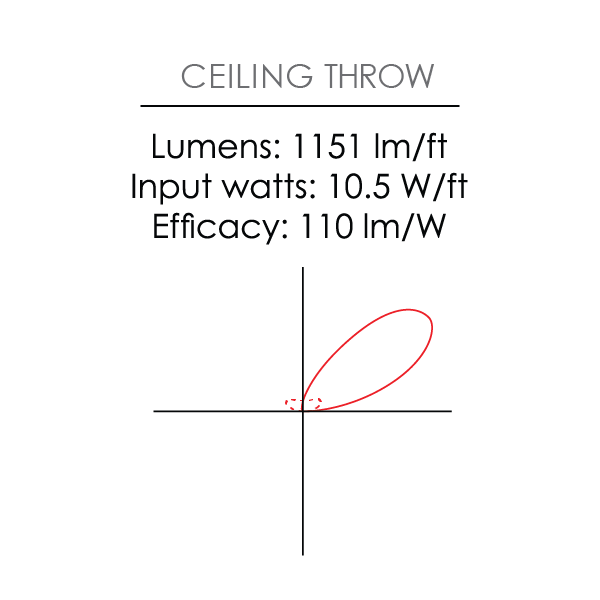

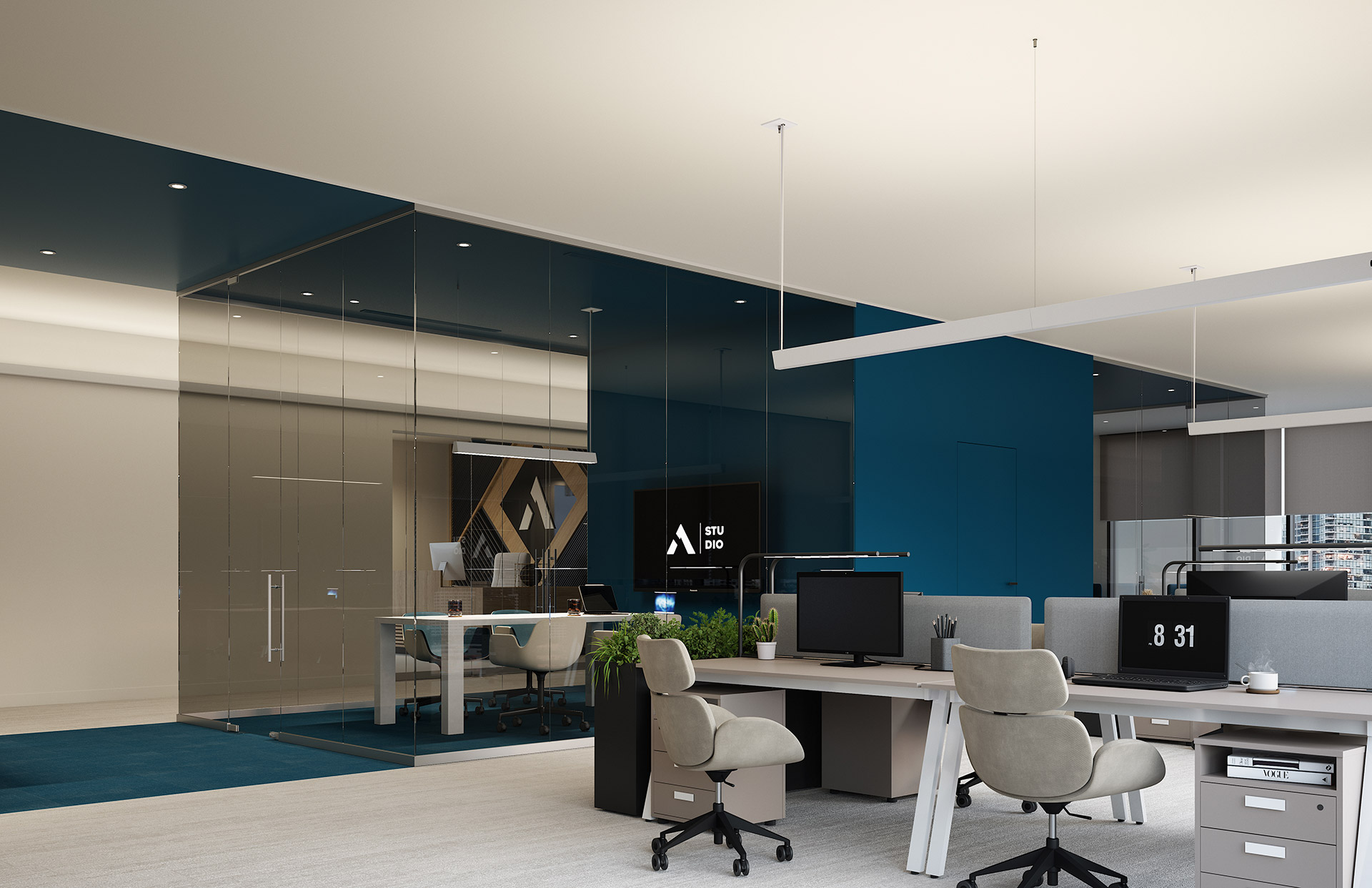

Designers can specify wall throw, ceiling throw or a combination of both in the same run to deliver the recommended footcandles to a typical tabletop. Mira’s indirect lighting design offers a flexible approach to providing room-filling, functional light while ensuring a glare-free experience.

Conference room example

In this example, the linear run along the glass partition directs light solely onto the ceiling, while the remaining sections can illuminate both the ceiling and wall. This design allows specifiers to avoid glare for those entering the room and avoid unwanted reflections on the glass surface.

Room dimensions: 16′ W x 20′ L x 10′ H
Total fixture length: 60′
Mounting height: 8′-6″ A.F.F.
Fixture spacing from ceiling: 18″
Fixture spacing from wall: 18″
Targeted table illuminance: 30fc
Total watts: 300
Intensity multiplier to achieve 30fc avg on the table top: 75%
Total watts (dimmed): 225
Power density (dimmed): 0.703 W/SF

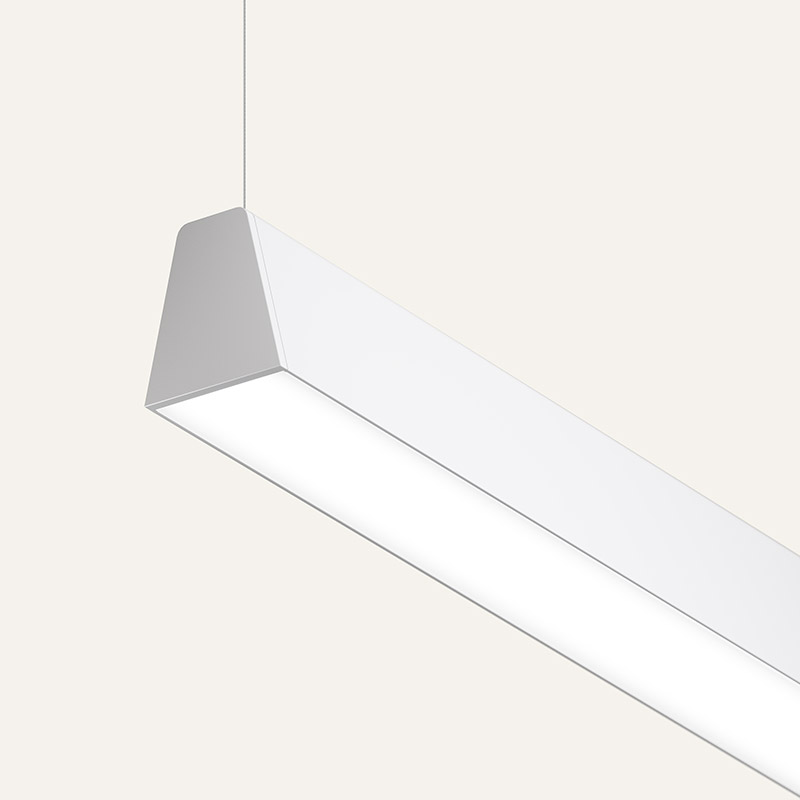

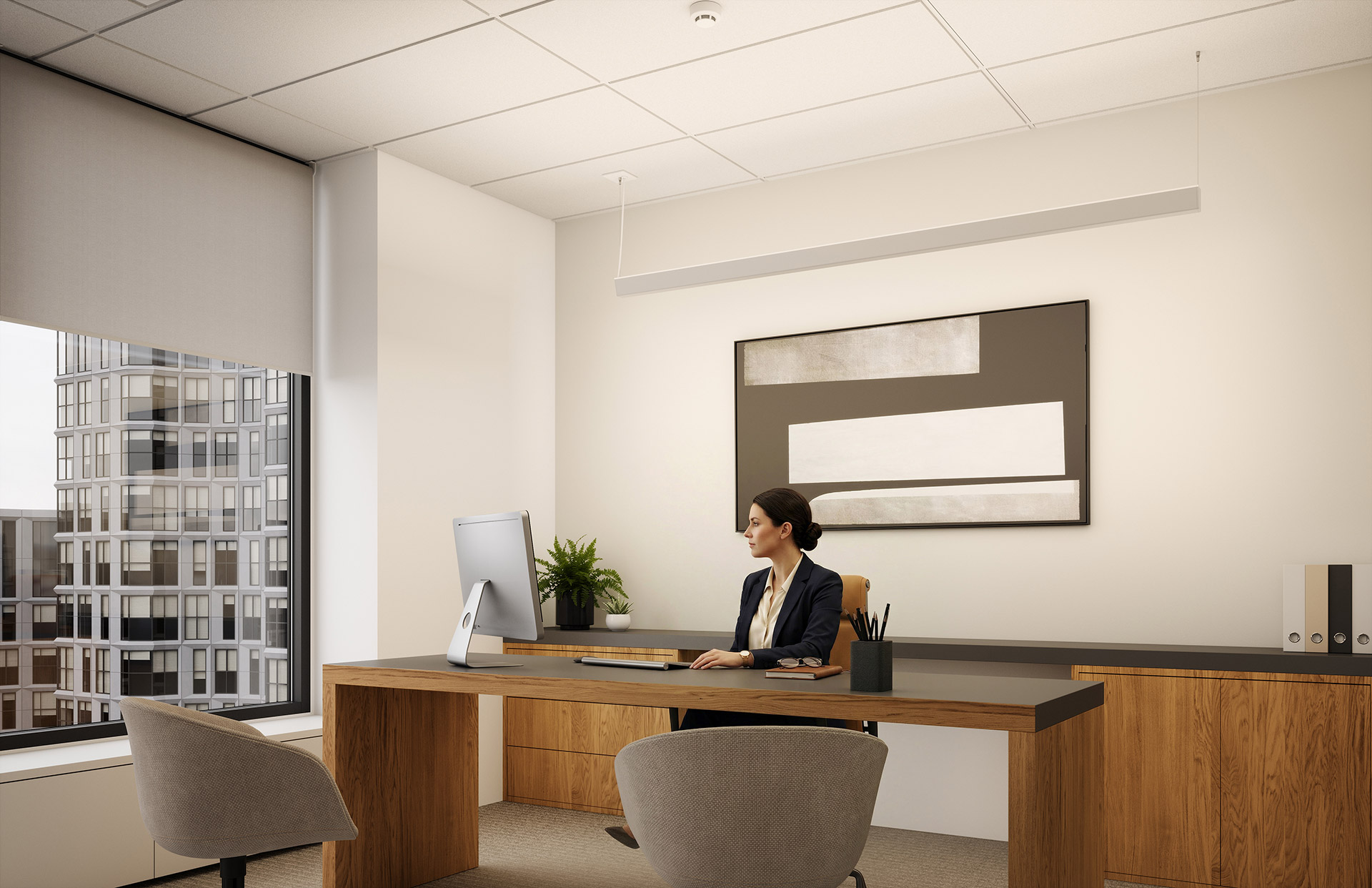

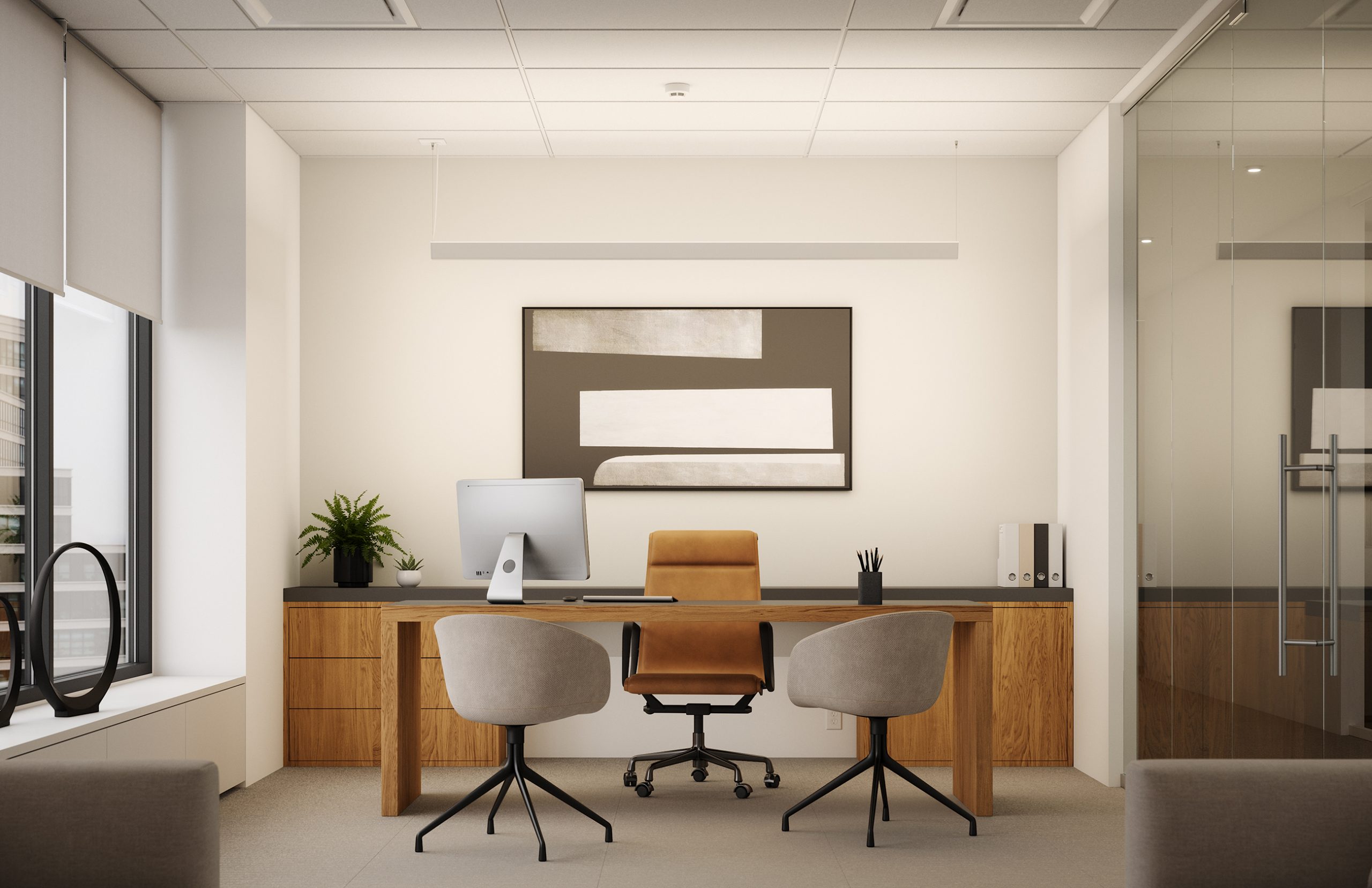

Even a single pendant can effectively illuminate a significant area. With lengths from two to eight feet, in one-foot increments, Mira’s output scales to fit the space.

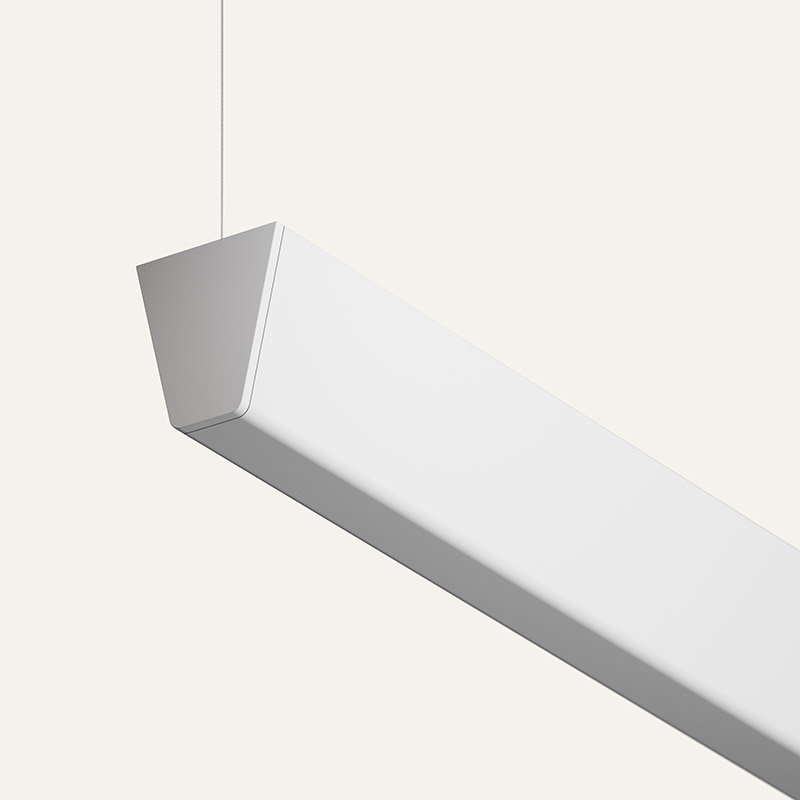

The slim, angled profile adds a modern design element.

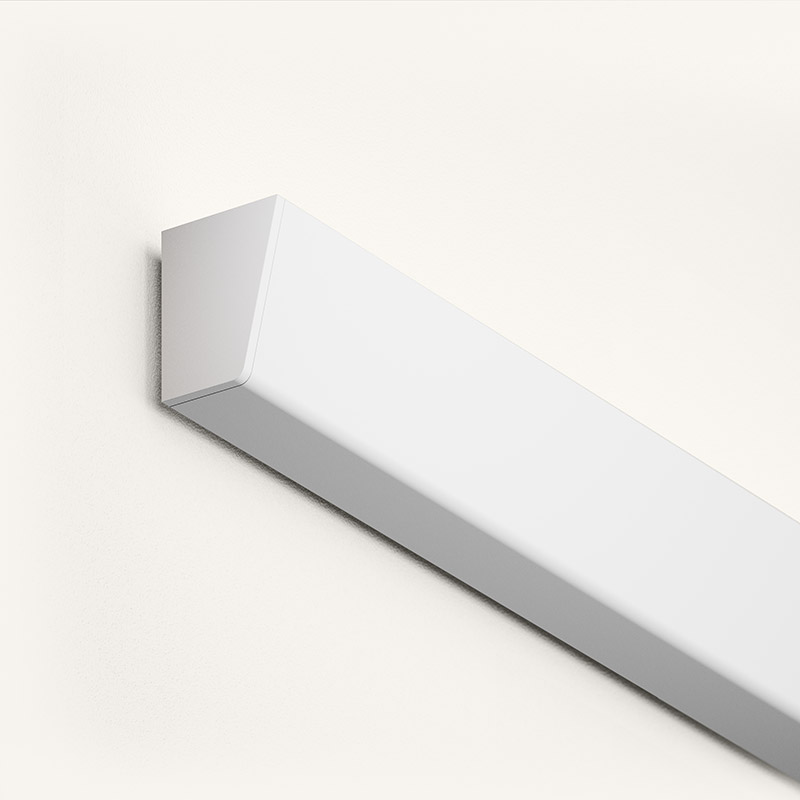

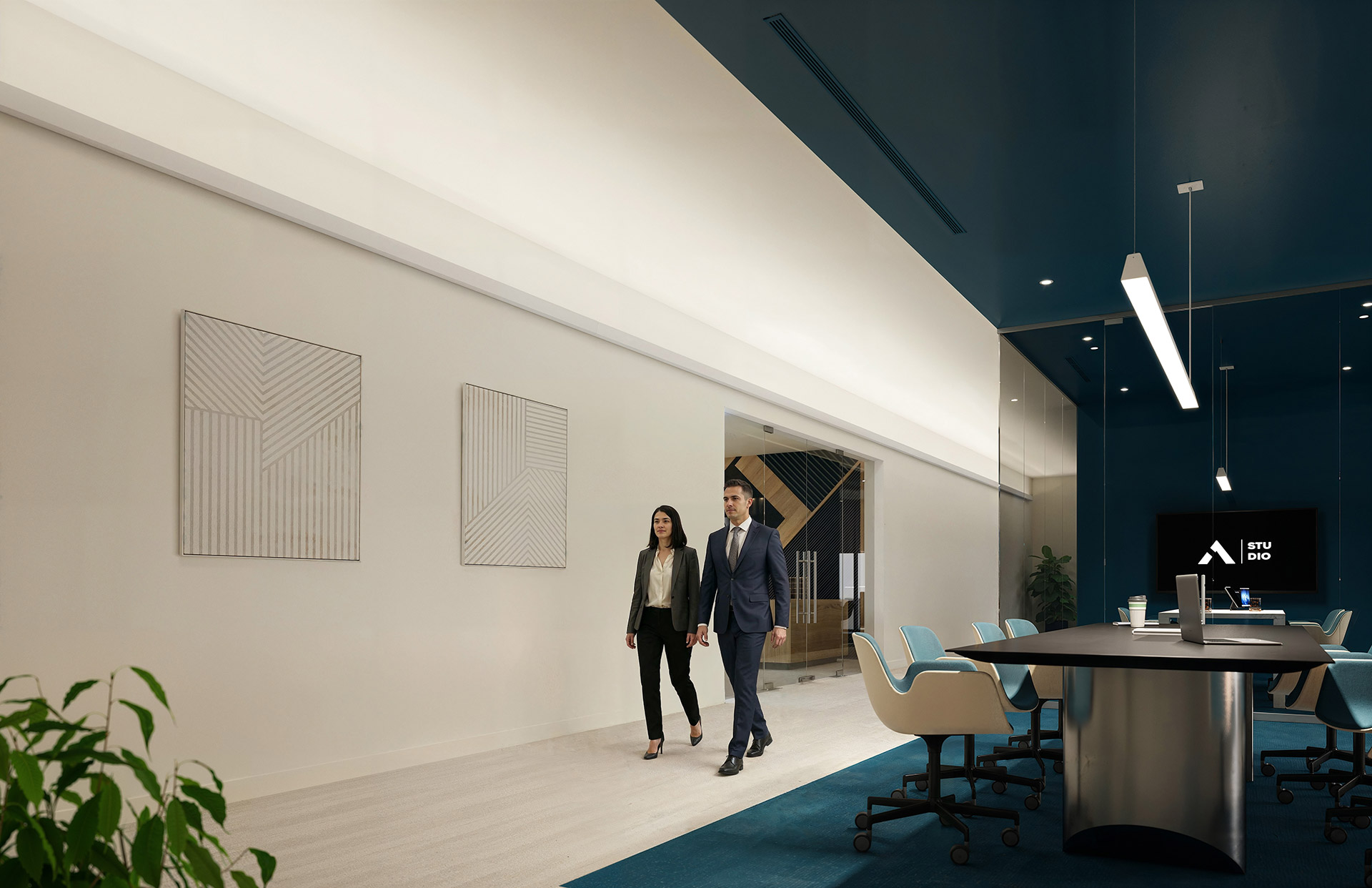

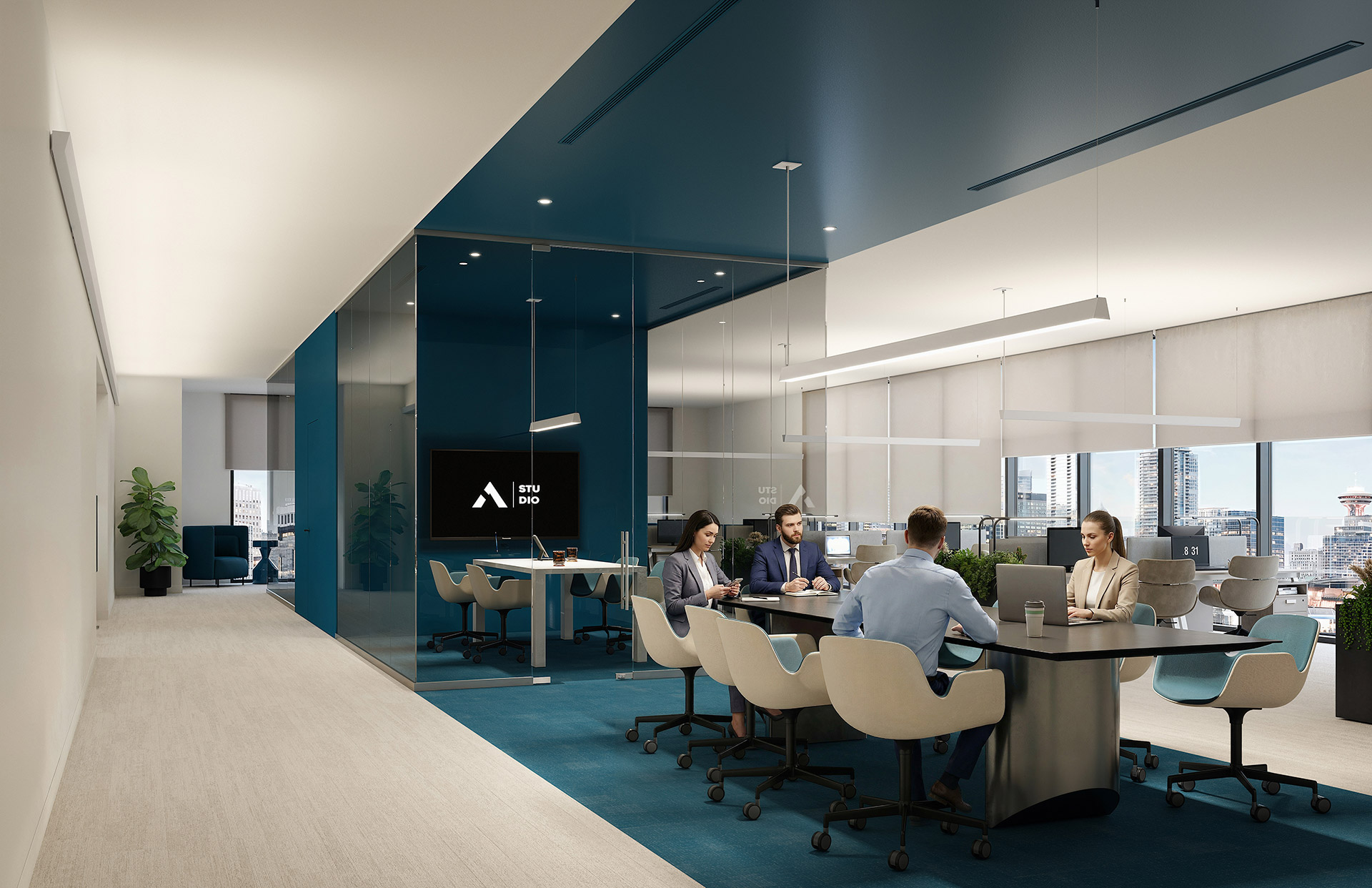

Wall mounted with a ceiling throw, Mira effectively illuminates wider corridors or areas that give way to more open spaces. Mira’s asymmetric distribution delivers an even coverage over large areas while maintaining uniformity. The light distribution across the ceiling minimizes hotspots and shadows, making the space inviting and functional. The ceiling remains fixture-free and visually quiet.

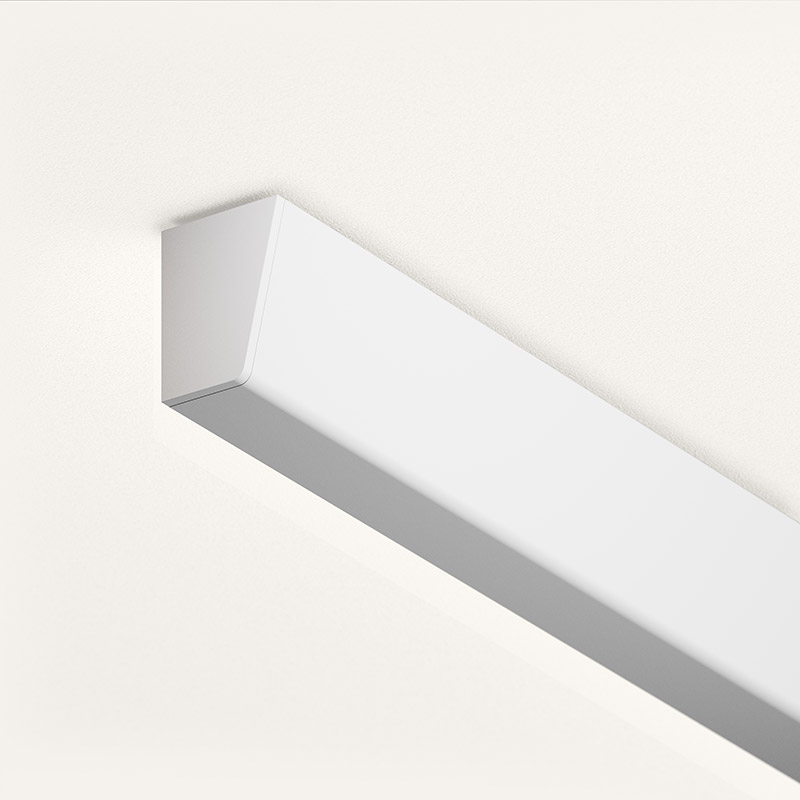

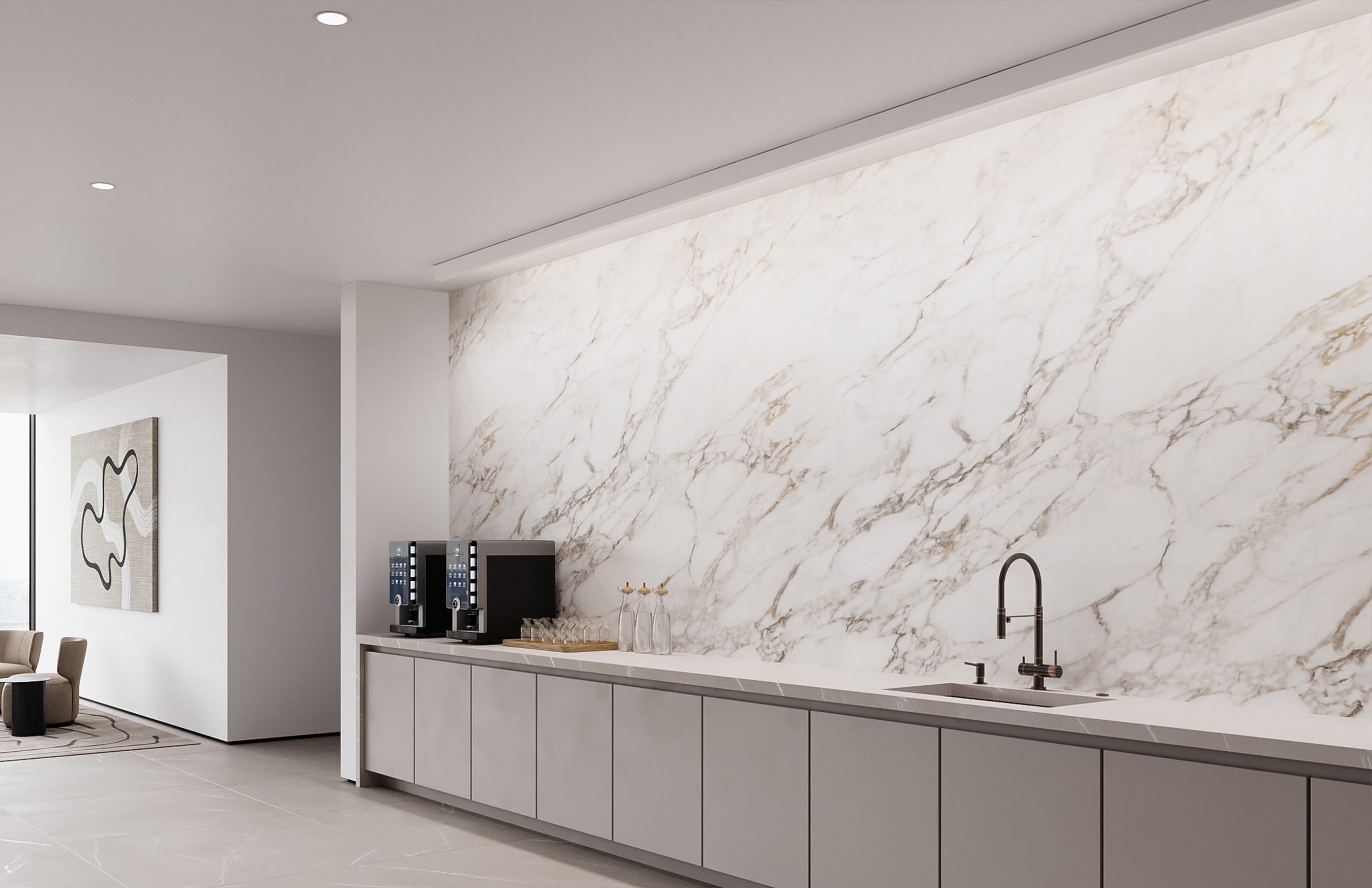

Mira enables even wall illumination without the need of a cove. Reflected light gently yet effectively illuminates adjacent features like counters and desks.
